Heavy-duty three-dimensional plane inline woodworking processing center

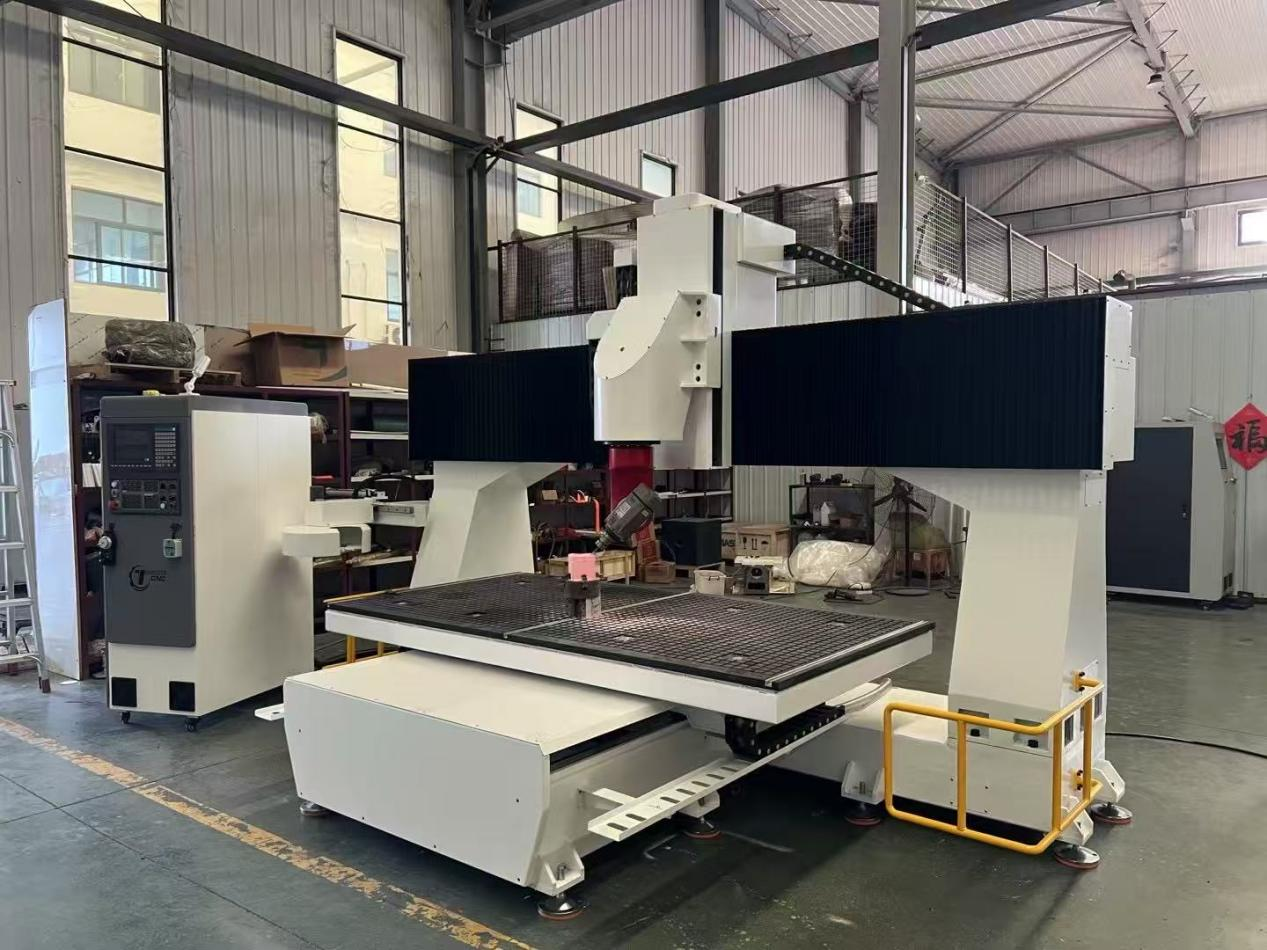

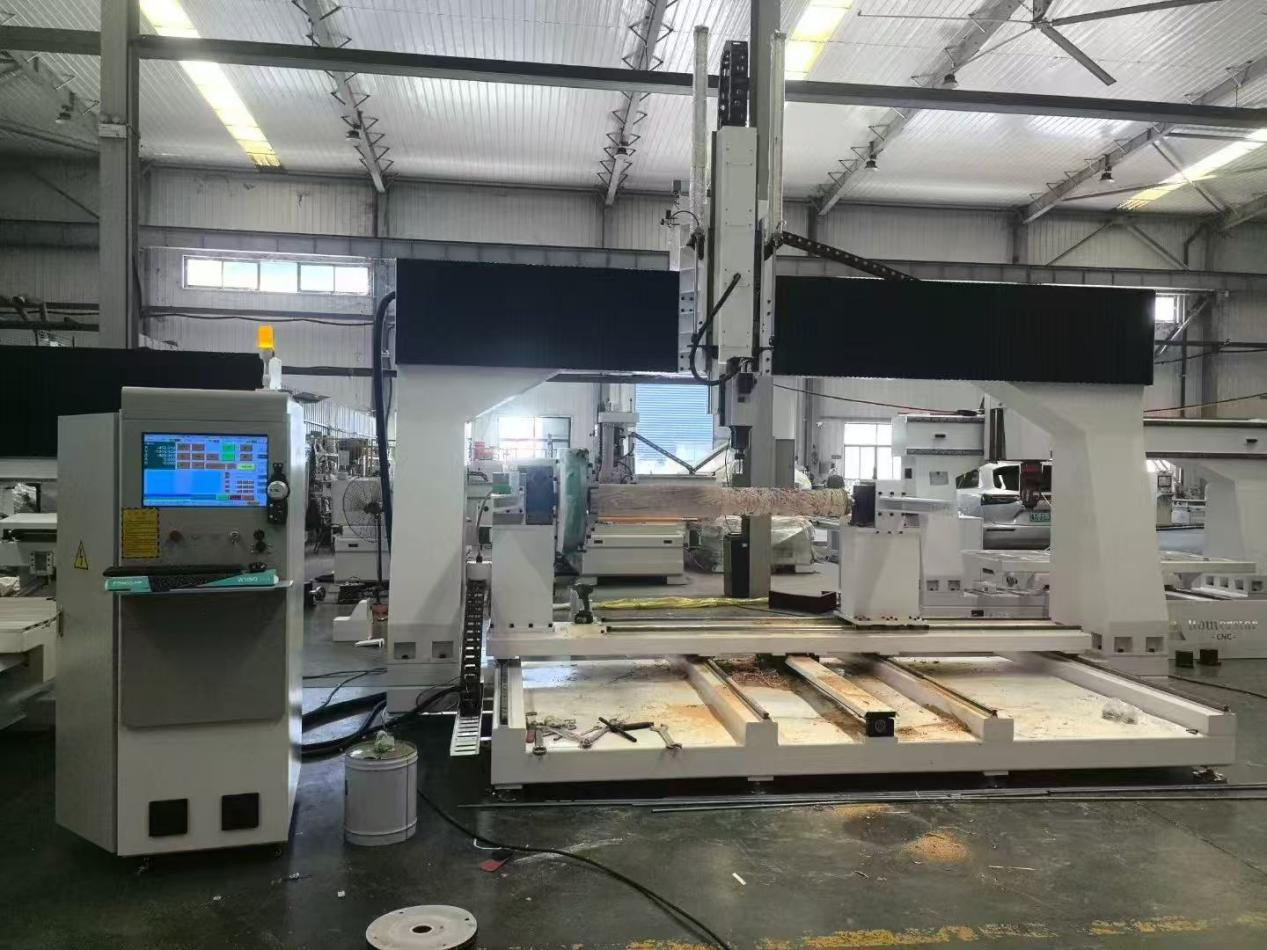

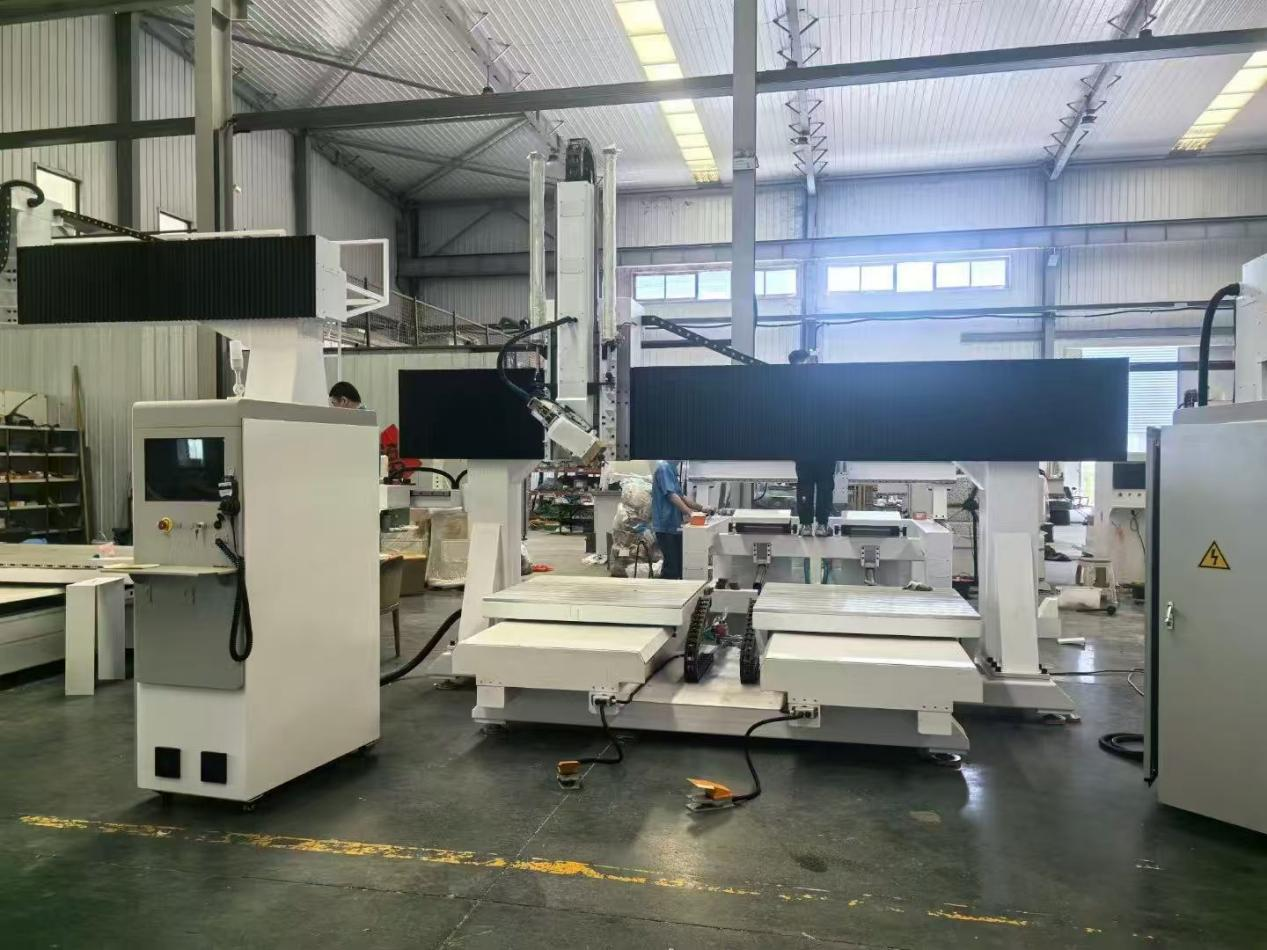

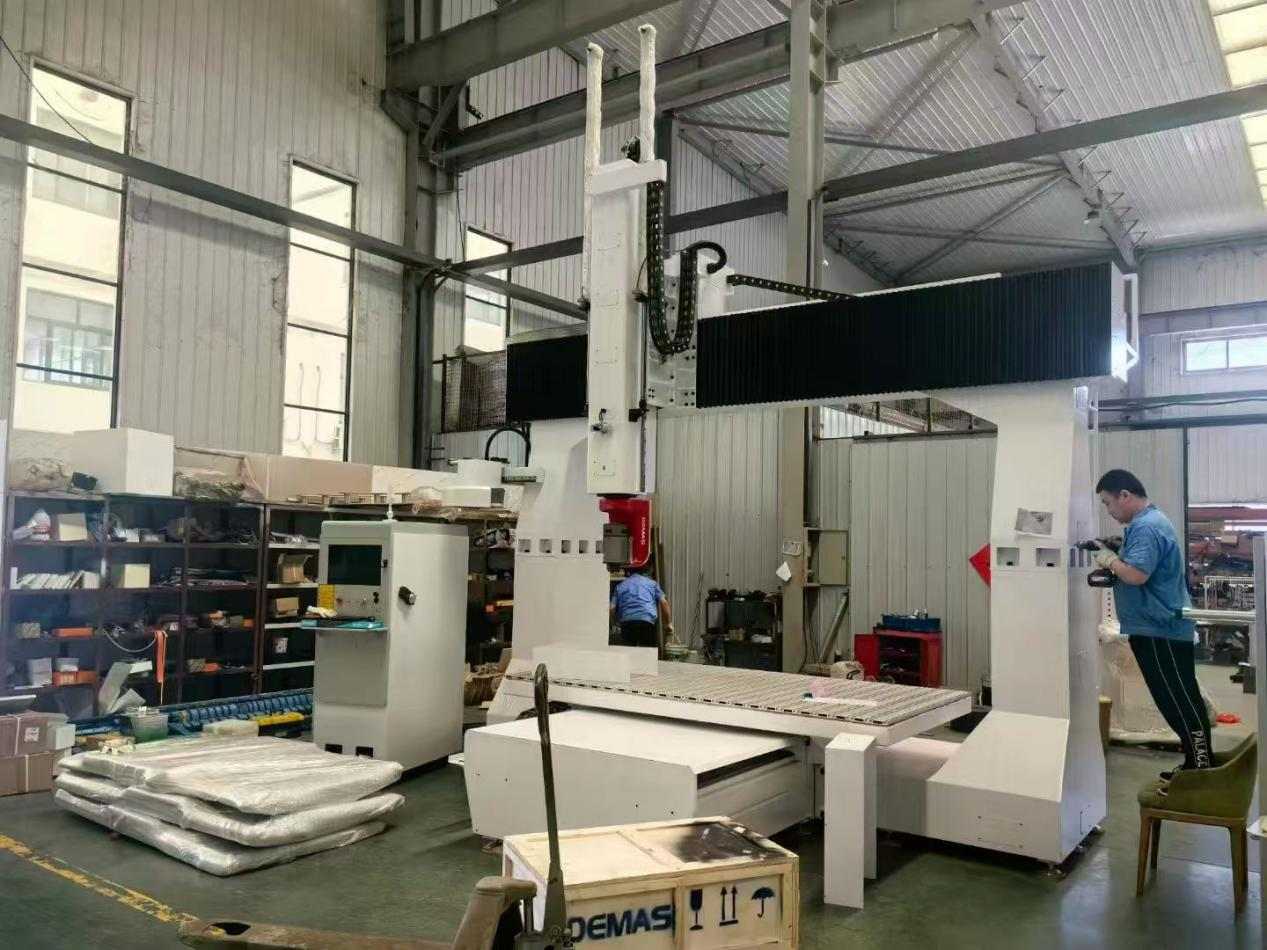

Machine Pictures
Machine Video
Technical parameters (reference configuration)
|
Name |
Parameter |
| Structure | Single-station inline machining center |
| Stroke | 1500*3000mm |
| Rotation axis size | 300*1500 |
| System | Taiwan LNC |
| Servo | 1500W bus absolute value integrated servo |
| Line | Jiexun high-flexible cable + isolated drag chain |
| Deceleration | Japan shimpo |
| Transmission | Y-axis 30 square gauge, XZ axis 25 square gauge, 1.5M rack |
| Spindle | LNCS 9kw tool change with integrated 12 tool magazine |
| Frequency conversion | Shenzhen Yi Yi Tong 11kw |
| Tool setting | Automatic tool setting instrument |
| Cylinder | Domestic |
| Electric | CHINT Electric |
| Lubrication | Automatic lubrication gear oil pump + volumetric oil discharge |
| Table | PVC pipe connection with 7.5kw water circulation pump |
| Vacuum cleaning | 4kw vacuum cleaner |
| Positioning | 4+2+2 with double-sided aluminum strips and pushed material |
| Pusher | Automatic unloading after processing + secondary dust removal |
