Split Type Co2 Laser Marking And Engraving Machine

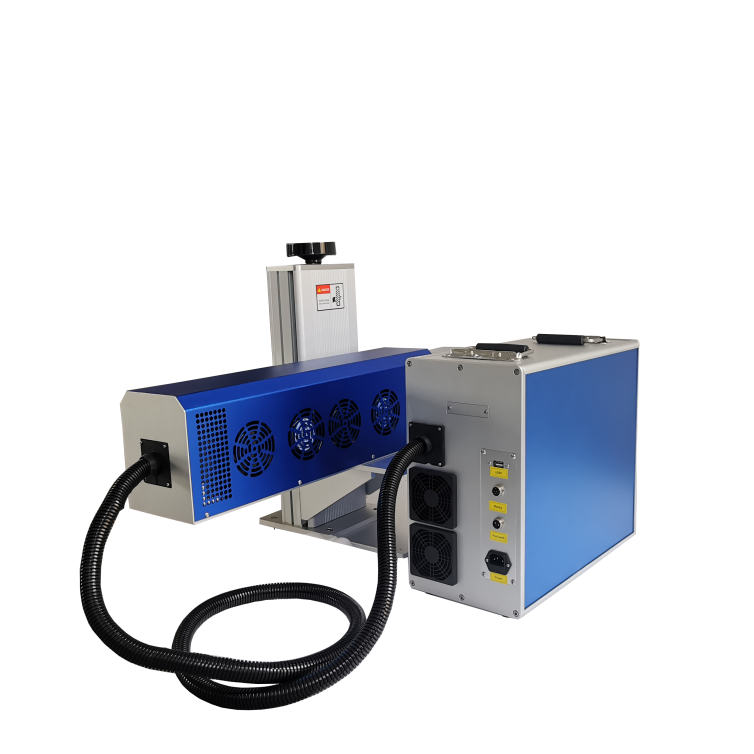

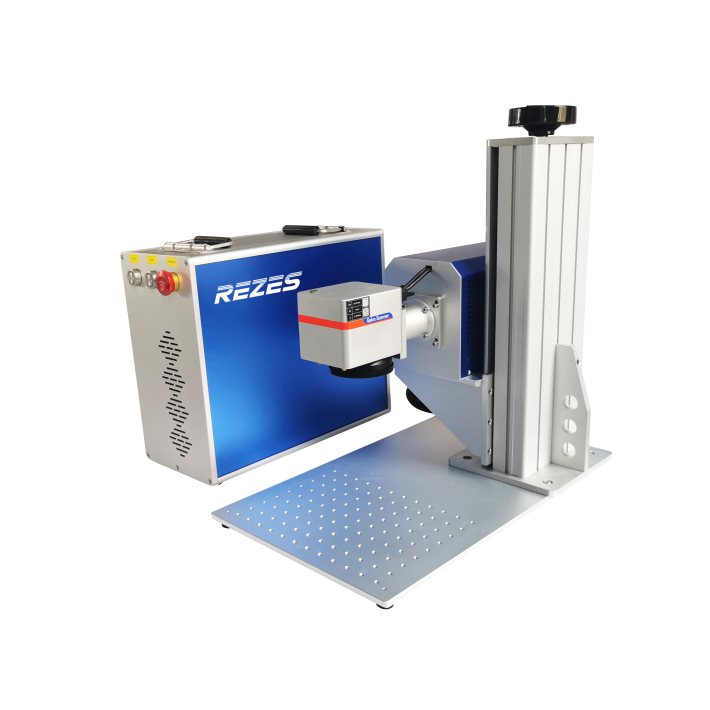

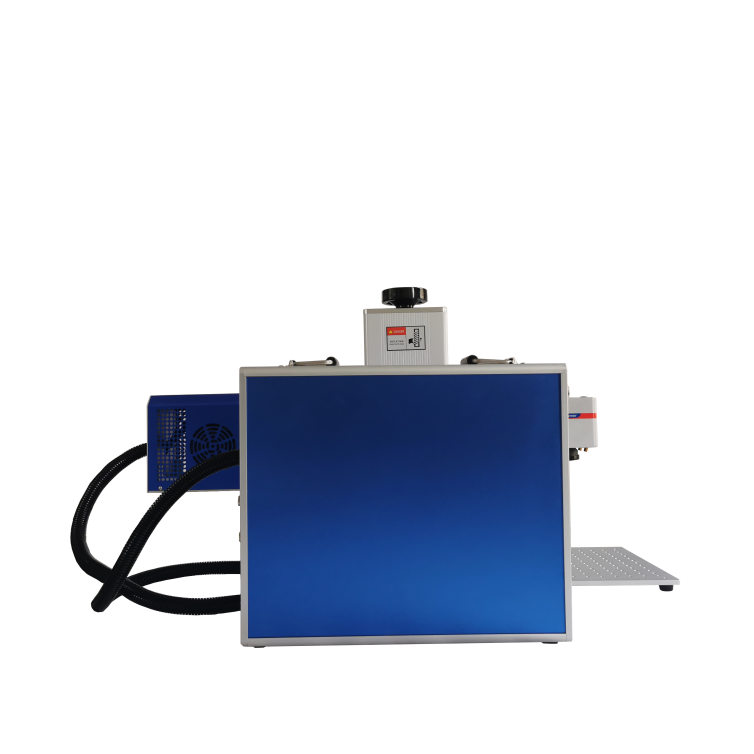

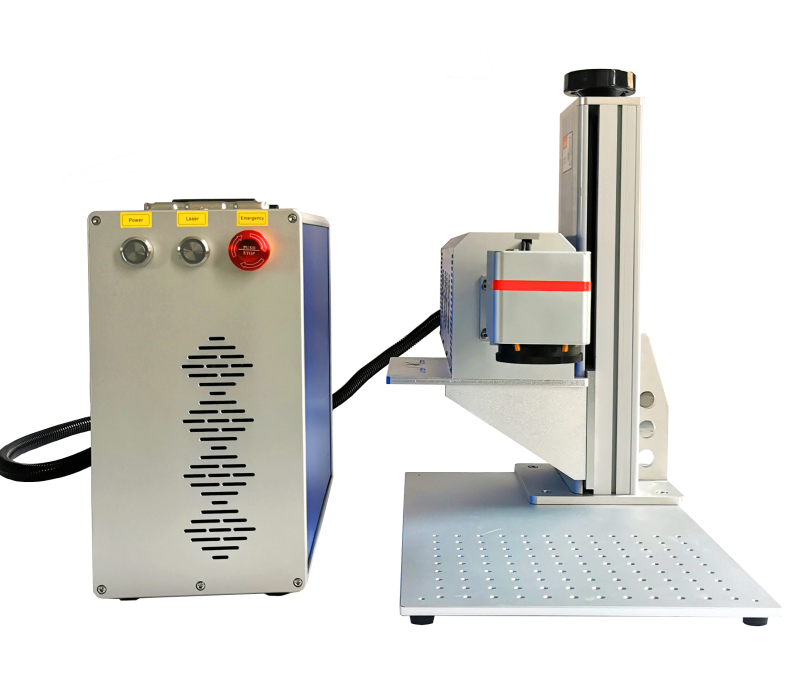

Product Display
Technical parameter
| Application | Laser Marking | Applicable Material | Non-metals |
| Laser Source Brand | DAVI | Marking Area | 110*110mm/175*175mm/200*200mm/300*300mm/other |
| Graphic Format Supported | AI, PLT, DXF, BMP, Dst, Dwg, DXP,ETC | CNC or Not | Yes |
| Wavelength | 10.3-10.8μm | M²-beam quality | ﹤1.5 |
| Average power range | 10-100W | Pulse frequency | 0-100kHz |
| Pulse energy range | 5-200mJ | Power stability | ﹤±10% |
| Beam pointing stability | ﹤200μrad | Beam roundness | ﹤1.2:1 |
| Beam diameter (1/e²) | 2.2±0.6mm | Beam divergence | ﹤9.0mrad |
| Peak effective power | 250W | Pulse rise and fall time | ﹤90 |
| Certification | CE, ISO9001 | Cooling system | Air cooling |
| Mode of Operation | Continuous | Feature | Low maintenance |
| Machinery Test Report | Provided | Video outgoing inspection | Provided |
| Place of Origin | Jinan,Shandong Province | Warranty time | 3 years |
Machine Video
The characteristics of UV laser marking machine :
1. Non-contact processing, applicable to a wide range of materials
The CO₂ laser marking machine adopts a non-contact processing method, which has no mechanical pressure on the surface of the material and does not damage the workpiece. It is particularly suitable for non-metallic materials such as wood, paper, leather, acrylic, plastic, glass, ceramics, rubber, cloth, etc. It can be widely used in packaging, handicrafts, electronics, building materials, advertising and other industries.
2. Fast marking speed and high efficiency
The equipment is equipped with a high-performance galvanometer scanning system, the laser beam moves quickly, and the marking speed can reach up to 7000mm/s, which is suitable for mass production tasks. Combined with the flight marking function, it can be matched with the assembly line to achieve online dynamic marking.
3. Fine marking, clear pattern
The laser spot is small, the focusing ability is strong, and the marking effect is fine and uniform. It can easily complete various high-resolution markings such as LOGO, QR code, barcode, text, pattern, etc., to meet the industries with high requirements for beauty and precision.
4. Low maintenance and use costs
The laser life is more than 20,000 hours, the whole machine maintenance is simple, and long-term operation costs are saved.
5. Compact structure and strong expandability
The CO₂ laser marking machine has a reasonable structural design and a small footprint. It can be configured with a rotating axis, XY platform, lifting system, automatic feeding platform, etc. according to actual needs. It supports desktop, vertical, split and other installation methods to meet different customers and process requirements.
6. Environmentally friendly and clean, with good safety
The processing process does not emit ink or polluting gases, and will not burden the environment. The equipment can be equipped with laser protective covers, laser protective glasses and smoke treatment systems to ensure the safety of operators and meet modern environmental protection production standards.
Marking samples :
Service:
1.Customized services:
We provide customized UV laser marking machines, custom designed and manufactured according to customer needs. Whether it is marking content, material type or processing speed, we can adjust and optimize it according to the customer's specific requirements.
2.Pre-sales consultation and technical support:
We have an experienced team of engineers who can provide customers with professional pre-sales advice and technical support. Whether it's equipment selection, application advice or technical guidance, we can provide fast and efficient help.
3.Quick response after sales
Provide fast after-sales technical support to solve various problems encountered by customers during use.
FAQ:
Q: How deep is the marking depth of the CO2 laser marking machine?
A: The marking depth of the CO2 laser marking machine depends on the type of material and the laser power. Generally speaking, it is suitable for shallow marking, but for harder materials, the marking depth will be relatively shallow. High-power lasers can achieve a certain depth of engraving.
Q: How does the CO2 laser marking machine ensure the durability of the marking?
A: The CO2 laser marking machine uses a high-temperature laser beam to ablate the surface of the material to form a mark. The marking is permanent, wear-resistant, and fade-resistant, and it is not easy to disappear due to external factors.
Q: What types of patterns can the CO2 laser marking machine mark?
A: The CO2 laser marking machine can mark various patterns, texts, QR codes, barcodes, serial numbers, company logos, etc., and is particularly suitable for applications that require detailed and precise marking.
Q: Is the maintenance of the CO2 laser marking machine complicated?
A: The maintenance of the CO2 laser marking machine is relatively simple. It mainly requires regular cleaning of the optical lens, inspection of the laser tube and the heat dissipation system to ensure the normal operation of the machine. Proper daily maintenance can extend the service life of the equipment.
Q: Is the cost of CO2 laser marking machine high?
A: Compared with traditional marking methods (such as inkjet printing), the initial investment of CO2 laser marking machine is higher, but since it does not consume consumables such as ink and paper, the overall cost is relatively low in the long run.
Q: What additional accessories or consumables are required for CO2 laser marking machine?
A: CO2 laser marking machine usually requires some accessories such as optical lenses, laser tubes and cooling systems. In addition, it may also require a suitable power supply and air compressor to ensure the stable operation of the machine.
Q: How to choose the right CO2 laser marking machine model?
A: When choosing the right model, you need to consider factors such as marking materials, marking speed, accuracy requirements, equipment power and budget. If you are not sure, you can consult the supplier to make recommendations based on specific needs.
