New Appearance Split Fiber Laser Marking Machine

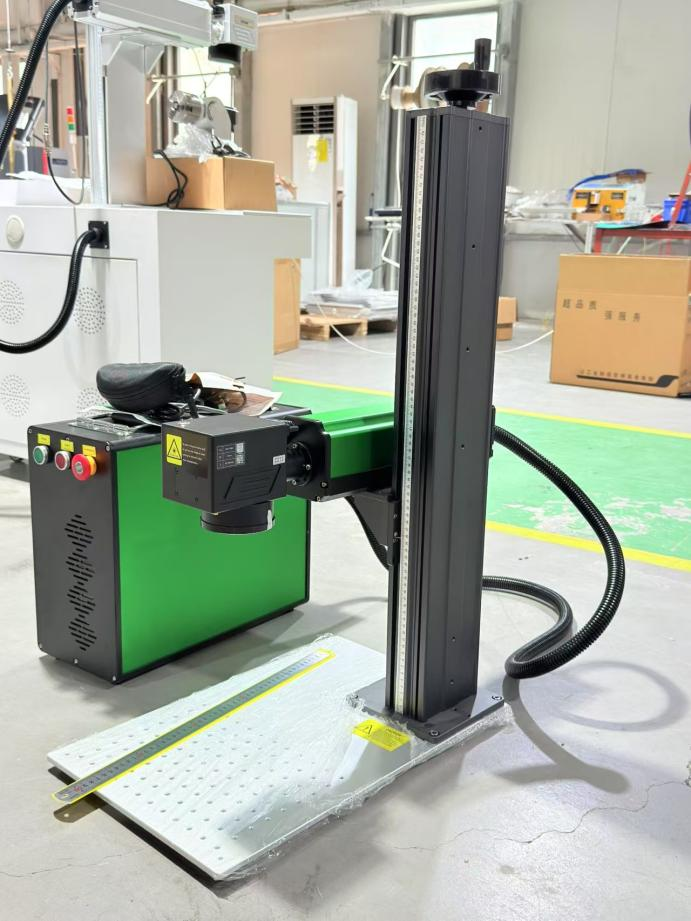

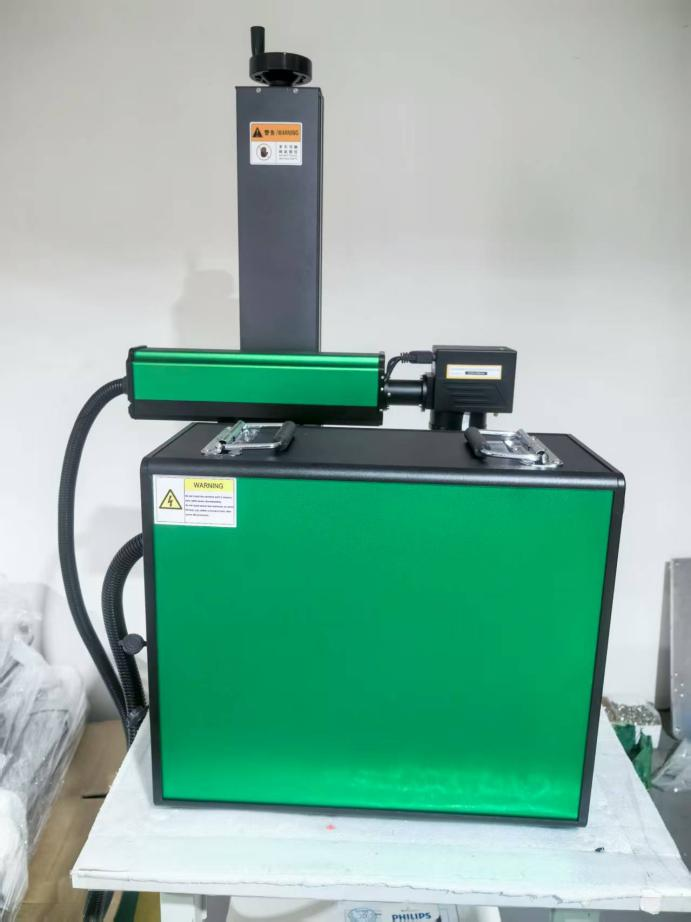

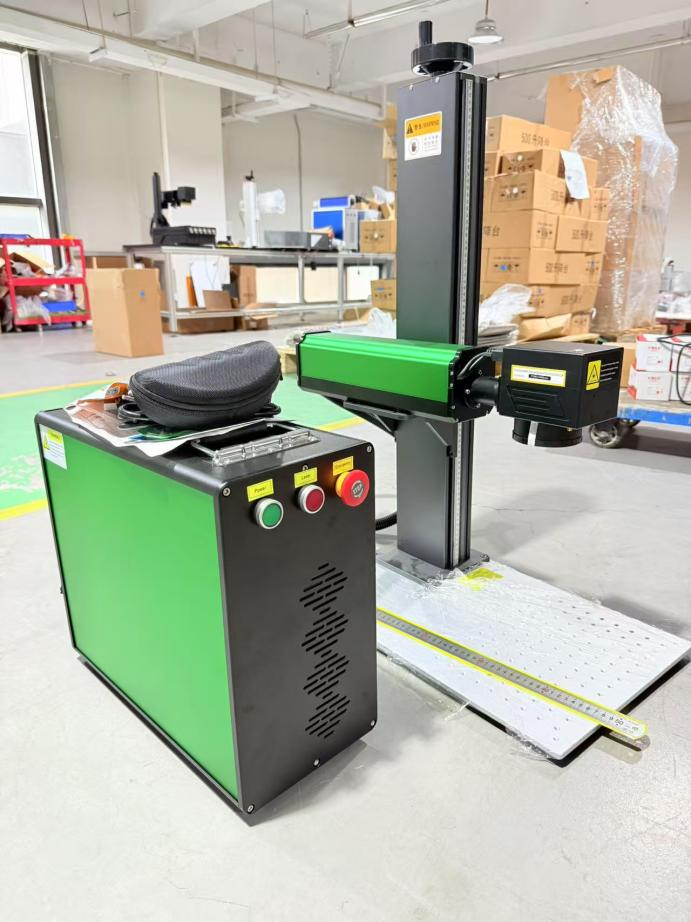

Product Display
Technical parameter
| Application | Fiber Laser Marking | Applicable Material | Metals and some non-metals |
| Laser Source Brand | RAYCUS/MAX/JPT | Marking Area | 110*110mm/150*150mm/175*175mm/other,can be customized |
| Graphic Format Supported | AI, PLT, DXF, BMP, Dst, Dwg, DXP,ETC | CNC or Not | Yes |
| Mini Line Width | 0.017mm | Min Character | 0.15mmx0.15mm |
| Laser Repetition Frequency | 20Khz-80Khz(Adjustable) | Marking Depth | 0.01-1.0mm(Subjejct To Material) |
| Wavelength | 1064nm | Mode Of Operation | Manual Or Automatic |
| Working Accuracy | 0.001mm | Marking Speed | ≤7000mm/s |
| Certification | CE, ISO9001 | Cooling system | Air cooling |
| Mode of Operation | Continuous | Feature | Low maintenance |
| Machinery Test Report | Provided | Video outgoing inspection | Provided |
| Place of Origin | Jinan,Shandong Province | Warranty time | 3 years |
Machine Video
The characteristics of UV laser marking machine
1. Fast marking speed and high efficiency
High-speed digital galvanometer system, marking speed can reach more than 7000mm/s;
Suitable for large-scale continuous production, improving production line efficiency.
2. Fine marking and clear effect
The laser beam quality is good (M² value is close to 1), the focus spot is smaller, and the marking line is finer;
It can clearly print fine patterns such as QR codes, tiny characters, icons, etc.
3. Ultra-long service life
Adopt high-performance fiber laser, the service life is up to 100,000 hours;
No need to frequently replace the light source, saving maintenance costs.
4. Maintenance-free and easy to operate
Air cooling system design, compact structure, no need for external chiller;
The whole machine has a modular structure, simple maintenance, and ordinary operators can get started.
5. Strong compatibility and wide range of applications
It can mark most metal materials (such as stainless steel, aluminum, copper, iron, etc.) and some plastics with high quality;
Widely used in electronics, hardware, auto parts, medical, handicrafts and other industries.
6. Intelligent control system
Equipped with EZCAD intelligent marking software, supporting multiple file formats (AI, DXF, PLT, BMP, etc.).
7. Flexible configuration, support customization
Multiple power options (20W / 30W / 50W / 100W / other);
Optional automatic lifting platform, rotating fixture, assembly line interface, etc. to achieve multi-scenario marking.
Marking samples :
Service:
1.Customized services:
We provide customized UV laser marking machines, custom designed and manufactured according to customer needs. Whether it is marking content, material type or processing speed, we can adjust and optimize it according to the customer's specific requirements.
2.Pre-sales consultation and technical support:
We have an experienced team of engineers who can provide customers with professional pre-sales advice and technical support. Whether it's equipment selection, application advice or technical guidance, we can provide fast and efficient help.
3.Quick response after sales
Provide fast after-sales technical support to solve various problems encountered by customers during use.
FAQ:
Q: What materials are UV laser marking machines suitable for?
A: UV laser marking machines are suitable for a variety of materials, including plastics, metals, rubber, ceramics, glass, etc., and can mark, etch or cut these materials with high precision.
Q.What is the speed of UV laser marking machine?
A: UV laser marking machines process quickly, but the actual speed depends on the content of the mark, the type of material, the depth of the mark, etc.
Q: What safety measures are required for UV laser marking machines?
A: UV laser marking machines must be equipped with appropriate safety measures, such as protective covers, emergency stop buttons, etc., to ensure the safety of operators. Operators must use appropriate personal protective equipment such as goggles.
Q:What are the application fields of UV laser marking machines?
A:UV laser marking machines are widely used in electronics, medical equipment, auto parts, jewelry, packaging and other fields. It can achieve high-precision and high-efficiency marking to meet the needs of different industries.
