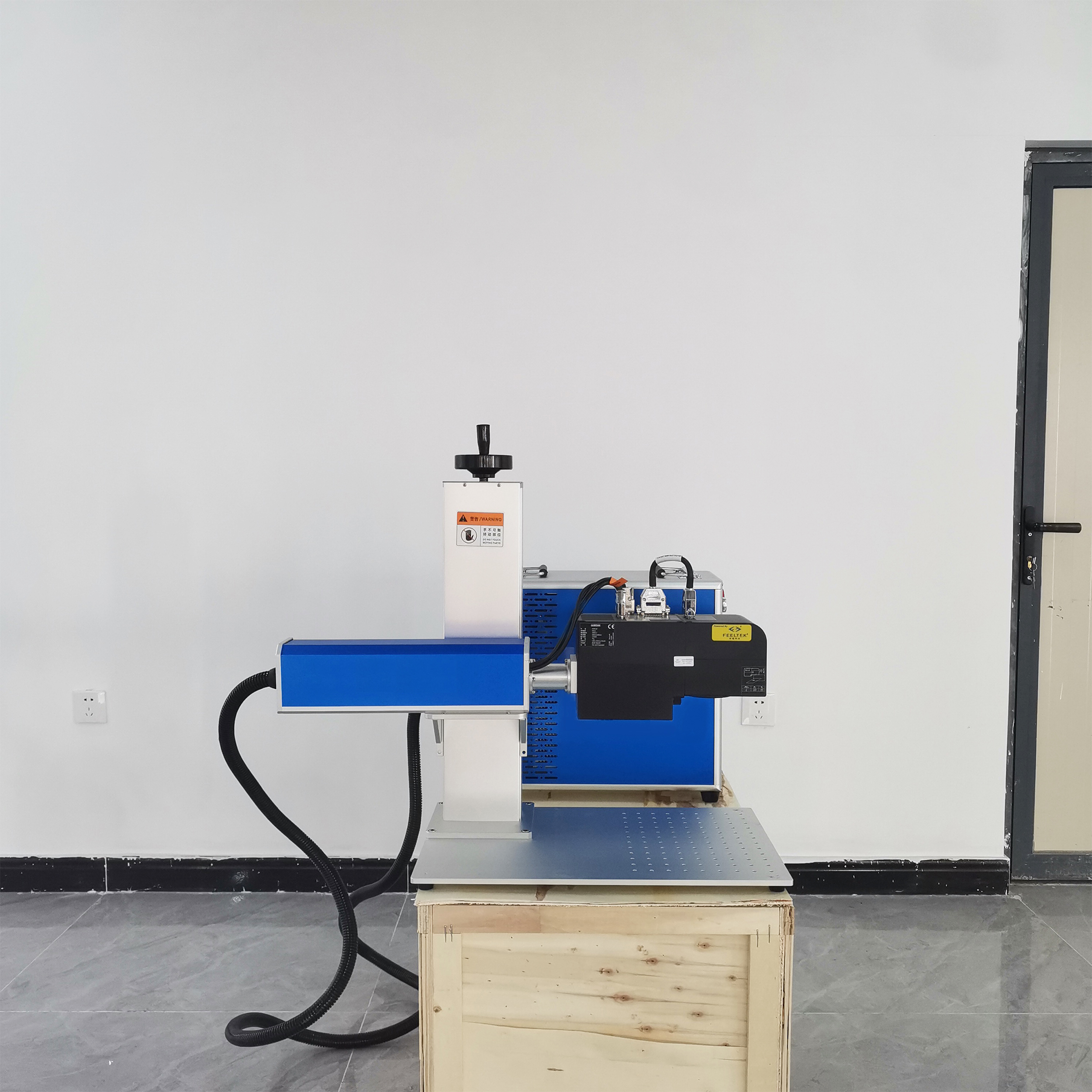

Split 3D FEELTEK Fiber Laser Marking Machine
Product Display
Technical parameter
| Laser type | Fiber Laser | Applicable Material | Metals and some non-metals |
| Laser Source Brand | RAYCUS/MAX/JPT | Marking Area | 110*110mm/150*150mm/175*175mm/other,can be customized |
| Graphic Format Supported | AI, PLT, DXF, BMP, Dst, Dwg, DXP,ETC | CNC or Not | Yes |
| Mini Line Width | 0.017mm | Min Character | 0.15mmx0.15mm |
| Laser Repetition Frequency | 20Khz-80Khz(Adjustable) | Marking Depth | 0.01-1.0mm(Subjejct To Material) |
| Wavelength | 1064nm | Mode Of Operation | Manual Or Automatic |
| Working Accuracy | 0.001mm | Marking Speed | ≤7000mm/s |
| Certification | CE, ISO9001 | Cooling system | Air cooling |
| Mode of Operation | Continuous | Feature | Low maintenance |
| Machinery Test Report | Provided | Video outgoing inspection | Provided |
| Place of Origin | Jinan,Shandong Province | Warranty time | 3 years |
Machine Video
The characteristic of 3D Fiber Laser Marking Machine :
1. 3D dynamic focusing technology
Through the dynamic focusing galvanometer system, complex curved surfaces of different heights/depths can be accurately marked.
Compared with traditional 2D marking, 3D marking avoids problems such as graphic deformation and focus offset, and the marking effect is more refined and uniform.

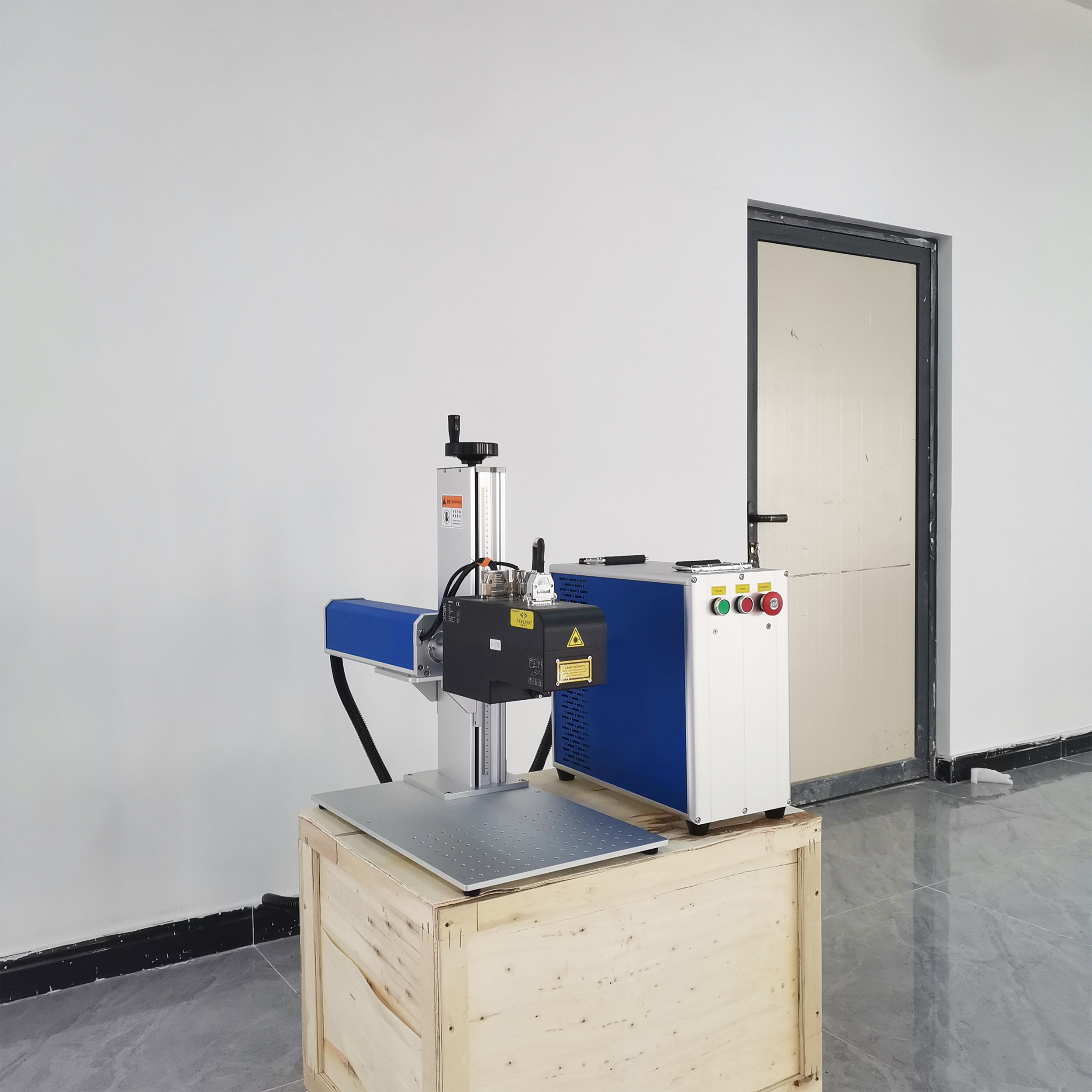

2. Split structure design
The laser head is separated from the control cabinet, which is convenient for flexible installation and suitable for integration into automated production lines or large workpiece work platforms.
Reduce vibration interference and improve marking stability.
3. High-performance fiber laser

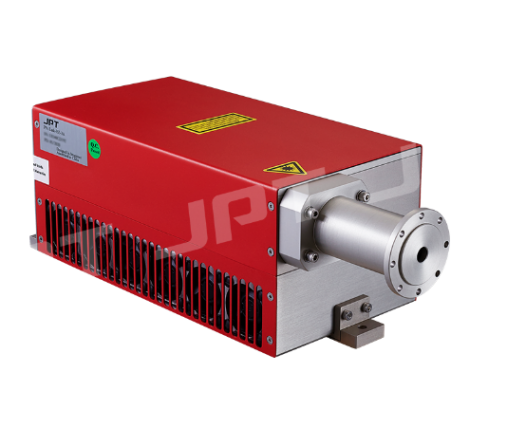

Adopt well-known brand light sources (such as JPT, Raycus, etc.), with excellent output beam quality and a lifespan of more than 100,000 hours.
Support continuous and pulsed laser output to meet the marking needs of different materials.
4. FEELTEK control system
The self-developed software platform supports a variety of 3D file formats (such as .stl, .obj, etc.).
Supports intelligent functions such as automatic focusing, batch marking, image preview, etc. to improve efficiency.
5. High-precision marking effect
The marking line width can reach 0.01mm, and the positioning accuracy is ±0.01mm.
Supports complex effects such as grayscale gradient, relief engraving, curved QR code, etc.
Service:
1.Customized services:
We provide customized fiber laser marking machine, custom designed and manufactured according to customer needs. Whether it is marking content, material type or processing speed, we can adjust and optimize it according to the customer's specific requirements.
2.Pre-sales consultation and technical support:
We have an experienced team of engineers who can provide customers with professional pre-sales advice and technical support. Whether it's equipment selection, application advice or technical guidance, we can provide fast and efficient help.
3.Quick response after sales
Provide fast after-sales technical support to solve various problems encountered by customers during use.
FAQ:
Q:What is a 3D Fiber Laser Marking Machine?
A:3D fiber laser marking machine uses dynamic focusing technology to automatically adjust the focal point, enabling high-precision marking and engraving on flat, curved, and 3D surfaces.
Q:What is the difference between a 3D and a 2D laser marking machine?
A:3D laser marker automatically adjusts the focal position for curved surfaces, height variations, and deep engraving, while a 2D machine is mainly designed for flat surfaces with a fixed focal plane.
Q:What materials can it process?
A:It can process stainless steel, carbon steel, aluminum, copper, titanium, coated metals, plastics, and more. Material compatibility depends on the laser source used.
Q:Can it mark directly on curved surfaces?
A:Yes. The dynamic focusing system automatically compensates for focal changes, ensuring clear and consistent marking on cylindrical, spherical, curved, and irregular surfaces.
Q:Does it support deep engraving and 3D relief engraving?
A:Yes. It supports deep engraving, 3D relief engraving, mold engraving, and texture processing.
Q:What file formats are supported?
A:It supports AI, DXF, PLT, BMP, SVG, and other 2D graphic files. STL and other 3D model formats are also supported depending on the software configuration.
Q:Can the machine be integrated into an automated production line?
A:Yes. It supports PLC communication, vision positioning, on-the-fly marking, automatic loading/unloading, and other automation solutions.
Q:Does the machine require regular maintenance?
A:Routine maintenance is minimal. Keep the lenses clean, ensure proper ventilation, and periodically inspect the optical path and electrical connections.
Q:Do you provide installation and technical support?
A:Yes. We provide pre-sales consultation, operation training, remote technical support, and comprehensive after-sales service to ensure a smooth production start.
