High precision fiber laser cutting machine cutting gold and silver

High precision cutting machine is mainly used for gold and silver cutting. It adopts high-precision module structure to assure good cutting effect. The laser source for this machine apply top world import brand, and has stable performance. Good dynamic performance, compact machine structure, sufficient stiffness and good reliability. The overall layout is compact and reasonable, and the floor area is small.

Send email to us

Product Detail

Product Tags

Product Display

Application

Widely used in electrical power, automobile manufacturing, machinery and equipment, electrical equipment, hotel kitchen equipment, elevator equipment, advertising signs, car decoration, sheet metal production, lighting hardware, display equipment, precision components, metal products and other industries.

Technical parameter

Product name	Gold Silver sheet Fiber Laser Cutting Machine
Laser wavelength	1064nm
Cutting size	200mm*200mm(Cutomization available)
Location precision	±0.005mm
Cutting gap width	0.05-0.10mm
Laser source	Cooperated laser source
Laser source power	1000w 1500w 2000w
Cutting head	Auto focus Ospri, Raytool available
Linear guide	Hiwin
Servo motor	Yaskawa motor
Max work speed	20m/min
Max moving speed	1G
Assisted gas	Compressed Air/ N2
Work voltage	220V 50HZ/60HZ
Machine weight	220 kgs
Machine Size	10007501626mm

Machine Video

High precision fiber laser cutting machine cutting gold and silver

Main advantage of machine

1.Automatic focusing, intelligent alarm system, automatic lubrication system.

2.Fully enclosed and surrounded to avoid environmental pollution.

3.Realize the cutting of ultra-fine holes, support three-level perforation, segmentation or progressive combination, the proportion of small hole processing range can be reduced by about 0.3mm (the thickness of ordinary steel plates is more than 4mm).

4.X, Y, Z axis adopts high-precision module structure to assure high cutting efficiency.

5. Can be customized artificial casting marble machine, stable structure/high strength, not easy to deform.

6. By using open CNC system provided by the top suppliers and integrating the company experience in laser industry for many years, the man-machine interface is so simple and more convenient to operate.System combines high and low voltage conversion gas path and three gas source structure composed of high pressure air, nitrogen and oxygen, so customers can select the auxiliary gas according to the processing quality requirements and cost.

7.Aviation grade magnesium aluminum alloy beam, stable structure, high strength, not easy to deform.

8.Z-axis automatic tracking system, equipped with capacitive non-contact automatic tracking system, can automatically adjust the focal length to ensure the effect of genuine cutting.

9. Using the machine tool with side guide rail structure, the vertical surface bears the load and is not easy to deform.

10. Laser interferometer correction and compensation, positioning accuracy can reach micron level.

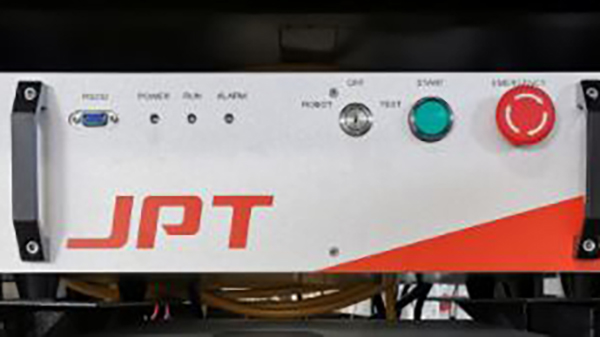

11. Adopting the world’s top fiber laser, stable performance, high efficiency and low cost.

12.By using the follow-up cutting head of international famous brand, the laser is always in the focus position, can ensure the cutting effect.

13.The optimized software algorithm can save the material to the maximum extent. Integrated a variety of specialty metal cutting technology such as common edge,bridge and micro connection,the difficulty of operation is reduced, so that improves the material management function, make full use of waste materials and meet the management needs.

14. The whole machine is equipped with lubrication system, which reduces the wear of moving parts and ensures the movement speed of the whole machine.
