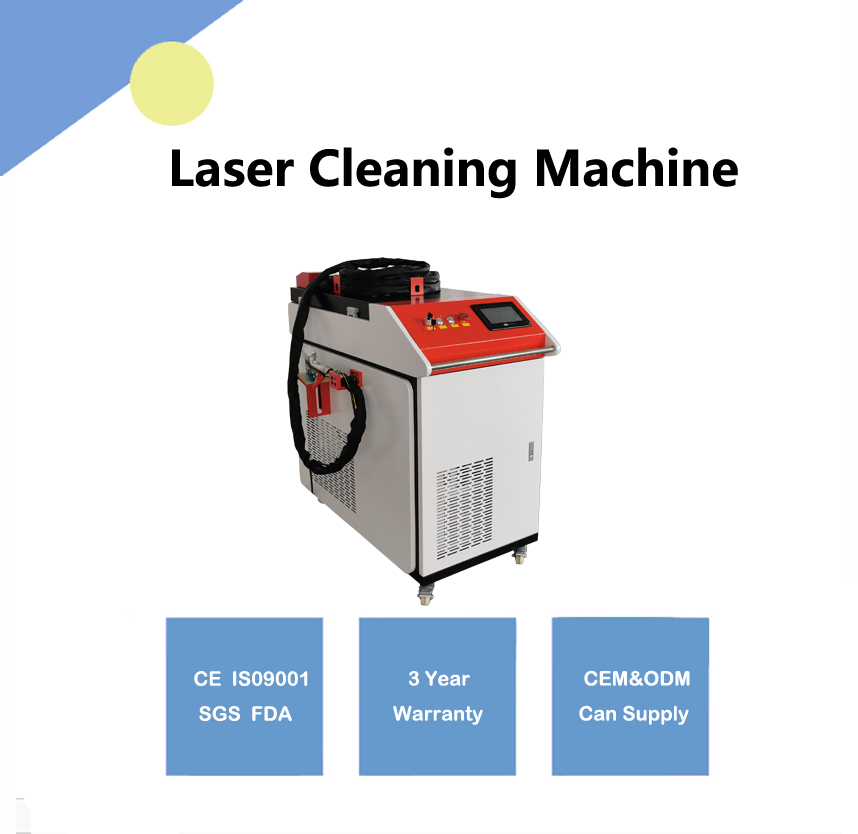

Laser Cleaning Machine

The laser cleaning machine is a new generation of high-tech product for surface cleaning.It could be used with no chemical reagents,no media, dust-free and anhydrous cleaning;

Raycus Laser source can last more than 100,000 hours, free maintenance; High electro-optical conversion efficiency (up to 25-30%), excellent beam quality, high energy density, and reliability, a wide modulation frequency;Easy operating system, supports language customization;

The design of the cleaning gun can effectively prevent dust and protect the lens. The most powerful feature is that it supports laser width 0-150mm;

About water chiller :Intelligent dual temperature dual control mode provides effective temperature control solutions for fiber lasers in all directions.

Product Detail

Product Tags

Product Display


Technical parameter



Core Components

Laser Source


Clean Metal

Max. Output Power

1500W, 1000W, 2000W

Working Environment

Flat, No Vibration, No Impact

Cnc Or Not


Clean Width


Cooling Method

Water Cooling

Cleaning Type


Laser Power

1000w/ 1500w/ 2000w

Weight (Kg)

300 Kg


Ce, Iso9001

Clean Way

Non-Touch Laser Cleaning

Key Selling Points



Metal Part Laser Welding

Fiber Length


Applicable Industries

Hotels, Garment Shops, Building Material Shops

Core Components

Laser Source, Laser Head, Double Wobble Lase Head

Laser Source Brand


After Warranty Service

Online Support

Focal Length

Focal Length Of Firld Mirror(F160,254,330.)

Maximum Pulse Energy


Supply Voltage


Graphic Format Supported

Ai, Plt, Dxf, Dwg, Dxp

Place Of Origin

Jinan,Shandong Province

Warranty Time

3 Years

The machine video

Laser cleaning machine cleaning rust:

The advantage of laser cleaning machine

1. Environmental protection: Laser cleaning is a "green" cleaning method that does not require the use of any chemicals and cleaning fluids. The cleaned waste is basically solid powder, small in size, easy to store, recyclable, and has no photochemical reaction. No pollution will occur.

2. Effect: The non-abrasive, non-contact and non-thermal effect of laser cleaning will not destroy the substrate, so these problems can be solved easily.

3. Control: The laser can be transmitted through the optical fiber, cooperate with the robot , and can easily realize long-distance operation. It can clean the parts that are not easy to reach by traditional methods. This can ensure the safety of personnel when used in some dangerous places.

4. Convenience: Laser cleaning can remove various types of pollutants on the surface of various materials, and achieve a cleanliness that cannot be achieved by conventional cleaning. Furthermore, contaminants on the surface of the material can be selectively cleaned without damaging the surface of the material.

5. Precision: It can clean up micron-level pollution particles and realize controllable fine cleaning, which is suitable for the cleaning of precision instruments and precision parts.

Applicable material

As a new cleaning method, laser cleaning machine has a wide range of industrial applications:

1. Rust removal and surface polishing

On the one hand, metals exposed to moist air react chemically with water to form ferrous oxide. Gradually, this metal will rust. Rusting can reduce the quality of the metal, making it unsuitable for many machining situations.

On the other hand, during heat treatment, an oxide layer will appear on the metal surface. This oxide layer changes the color of the metal surface and prevents further processing of the metal.

Both cases require a laser cleaner to get the metal back to normal.

2. Anode assembly cleaning

If there is dirt or other contaminants on the anode assembly, the resistance of the anode increases, causing the battery to drain energy faster and ultimately shorten its lifespan.

3. Preparation of metal welds

For better adhesion and better weld quality, the surfaces of the two metals need to be cleaned before welding. If not cleaned, joints are prone to breakage and wear out quickly.

4. Paint Removal

Laser cleaning can be used to remove paint in industries such as automotive, maintaining the integrity of the base material.

Cutting sample

Comparison before and after cleaning
